Adding a paint mix room seems simple
It's just a small space for storing and mixing coatings after all, right? In reality, it's a code-driven part of your finishing system, affecting safety, compliance, workflow, and space.
The Mix Room Explained
An industrial paint mix room is more than just storage or a workstation for mixing. It is a fully enclosed, mechanically ventilated space for storing and mixing paints, solvents, and coatings designed to ensure it controls hazardous vapours and spills.
Filtered air enters through intakes, flows in a controlled pattern, and exhausts captures vapours, preventing volatile compounds from building up. A quality mix room usually has 18-gauge galvanized or pre-coated steel panels. When done correctly, this creates a controlled space for safe, code and permit-compliant, consistent colour matching, mixing, and materials handling beside your spray booth.
Footprint: How Much Space You Really Need
So we understand the basic materials and parts of a mix room, but what kind of space does one require in your shop?
With an NFPA 33 set maximum size of 14 square metres (150 square feet), you won't need as much space as you might think. Typical sizes are around 1.8 m x 2.4 m, with larger units extending to about 4.6 m in length.
On top of the room itself, you also need to account for:
- Clearance for doors and personnel access
- Space for exhaust ductwork and roof or wall penetrations
- Service access to fans, lights, and control panels
As with any plans, measure twice, build once.
Why Professional Shops Rely on Mix Rooms
There are three main reasons mix rooms are recommended, and even required today.
- Safety and exposure control - A mix room confines flammable liquids and vapours, and prevents mixing, ventilating airborne contaminants out of the shop. Proper ventilation also removes vapours near the floor, where heavier solvents collect, the cleaner air within the mix room lowers staff risk.
- Compliance and storage limits - Codes like NFPA 33 limit how much flammable or combustible liquid you can store based on floor area, so here, a properly planned-out, code-compliant mix room offers clear inspection points for regulated storage and handling (and clear guidelines for you and your team to follow).
- Quality and Productivity – A properly ventilated mixing space improves colour matching, limits contaminant entry, and increases consistency of preparation. Staff can use a consistent space, cutting errors and waste over time on-site as part of the booth’s workflow.
More Than Just a Recommendation
So, where are these becoming more standardized in modern paint booth operations?
- Automotive Collision and Refinish
- Truck, Bus, and Fleet Operations
- Industrial Manufacturing & Fabrication
- Aerospace and Defence
- Marine and Heavy Equipment Painting
In these environments a mix room more than a 'nice-to-have.' It's now expected, desired, and even required by code and permitted in many cases. Outliers with smaller or infrequent coating operations exist, but as throughput grows, a mix room often becomes a workable solution for compliance and organization.

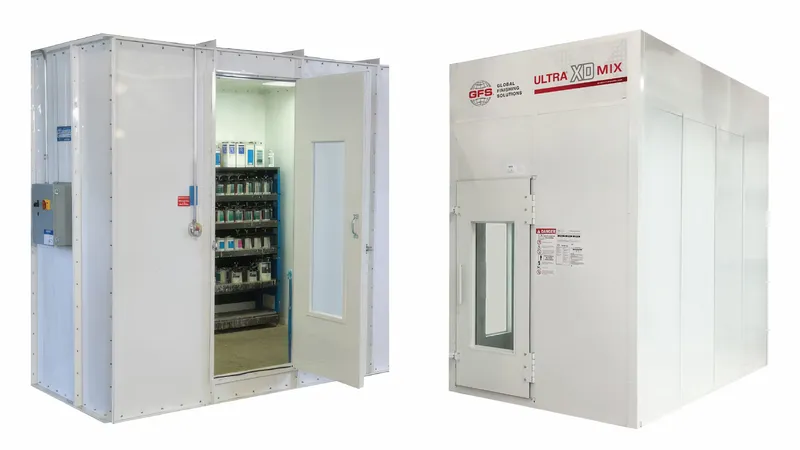

Available Configurations and Options
Most makers offer modular mix rooms in standard sizes and with various options to suit your specific needs. Rooms can be standalone or attached to a booth, depending on layout and workflow. There is a variety of optional parts available which is why planning out in advance is vital, as some the options can be more difficult to add after the fact.
Permits, Codes, and Building Requirements
Lastly, and definitely not something to ever be glossed over, is the requirement for permits and inspection, as a mix room is a critical requirement for compliance and worker safety, not just storage.
Local officials often treat spray booths and mix rooms as buildings or systems rather than as components, so you may need building and mechanical permits, as well as fire or safety approval. Local rules vary, so always confirm with authorities before finalizing layout and size.
Bringing Everything Together
Adding a mix room is not just placing a cubicle by your booth with a workbench. It's a code-driven feature for safety, compliance, and workflow. If you spray often, handle large volumes, or face inspections, a well-designed mix room is a requirement, not a luxury for the modern paint booth operation.
If you're not sure where to start, we're here to answer your questions.
